Security Equipment (Single-Pole Metal Detector)
ACSG Systems offers an advanced security solution specifically designed for police and law enforcement agencies to ensure public safety, operational efficiency, and strict access control in the field. Our specialized screening solution, the Single-Pole Metal Detector delivers uncompromising reliability, speed, and precision for checkpoints, high-traffic public venues, and critical security operations.
Product Overview

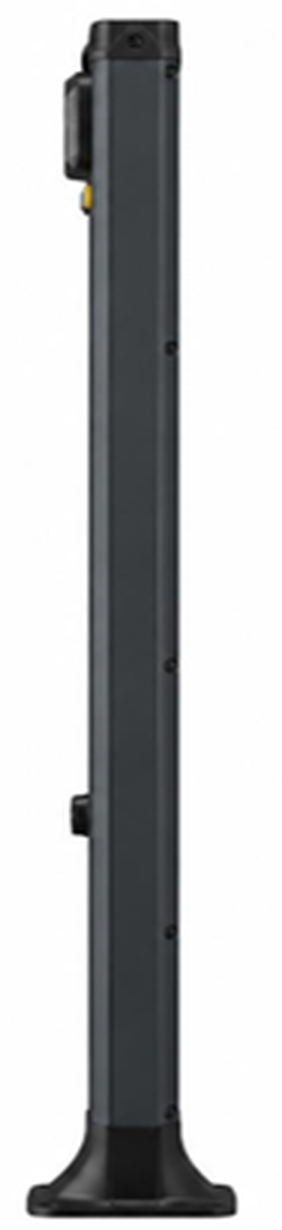

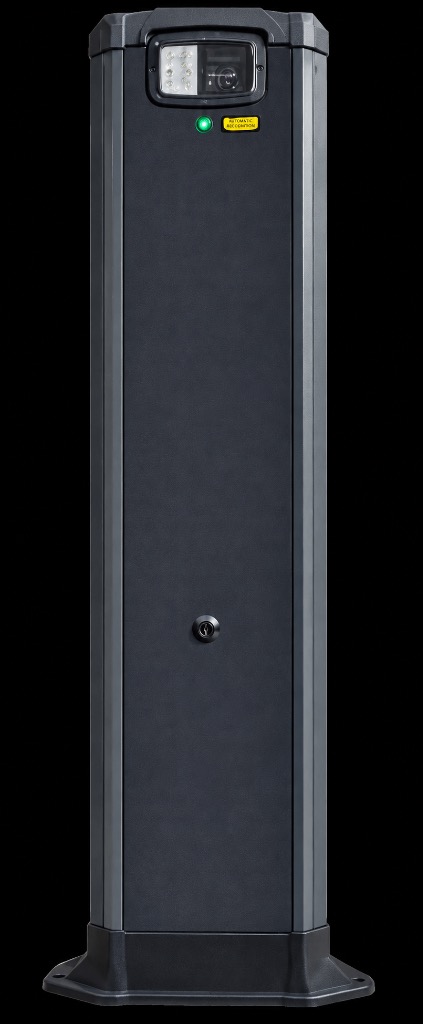

The Single Pole door frame metal detector is an advanced security device designed for high-accuracy checkpoint screening. The device is used to screen people for metal objects as they walk through the detector, making it commonly used in airports, courthouses, and other high-security areas to detect weapons and other prohibited items. The device uses electromagnetic fields to detect metal and emits an alarm if a metal object is detected.
Key Features & Technical Specifications
The Single-Pole Metal Detector is engineered with 6 distinct zones to precisely identify metal locations horizontally, supported by LED displays on both sides for clear visualization. Backed by double infrared detectors and digital circuit designs with anti-interference capabilities, advanced algorithms minimize false alarms while maintaining exceptional sensitivity for small weapons and all types of metal. The operating frequency (0-99) can be adjusted manually or automatically with adaptive functions to seamlessly tune out local environmental noise.
For comprehensive monitoring, the unit includes a 6-stage LED bar on the panel to indicate the volume or mass of detected metal, alongside fine-grained sensitivity levels spanning 0 to 400. It is fully equipped with operational alarm and pass counters ranging from 0 to 99999, multiple selectable alarm sounds, and adjustable alarm durations. Certified safe and harmless to the human body, including individuals with heart pacemakers, pregnant women, and items like magnetic floppies or recording tape, the detector features a robust, foldable frame that transitions effortlessly between permanent installations and rapid field setups.
Quick Specifications
- Zones: 6 Distinct Horizontal Zones
- Sensitivity: 0 to 400 Adjustable Levels
- Frequency: 0–99 Adaptive Bands
- Mass Indication: 6-Stage LED Visual Bar
- Counters: 0 to 99999 Alarm & Pass Log
- Safety: Pacemaker & Pregnancy Safe
- Frame: Foldable Modular Setup
Core Benefits
Deploying this advanced screening system offers effective and reliable detection for potential security threats, actively helping security personnel prevent dangerous objects from entering high-risk areas. Its visible presence serves as a strong deterrent, discouraging individuals from attempting to bring prohibited items onto the premises. Built with high-quality materials to withstand heavy traffic environments, the system features adjustable sensitivity and customizable settings to perfectly suit diverse security requirements. Above all, it provides an intuitive, easy-to-use platform that ensures operational efficiency with minimal training required for staff.
Effective Detection
Prevents dangerous objects from entering secured premises.
Visible Deterrent
Discourages unauthorized contraband attempts.
Heavy-Traffic Ready
Built to withstand demanding continuous operation.
Minimal Training
Intuitive interface for rapid staff onboarding.
